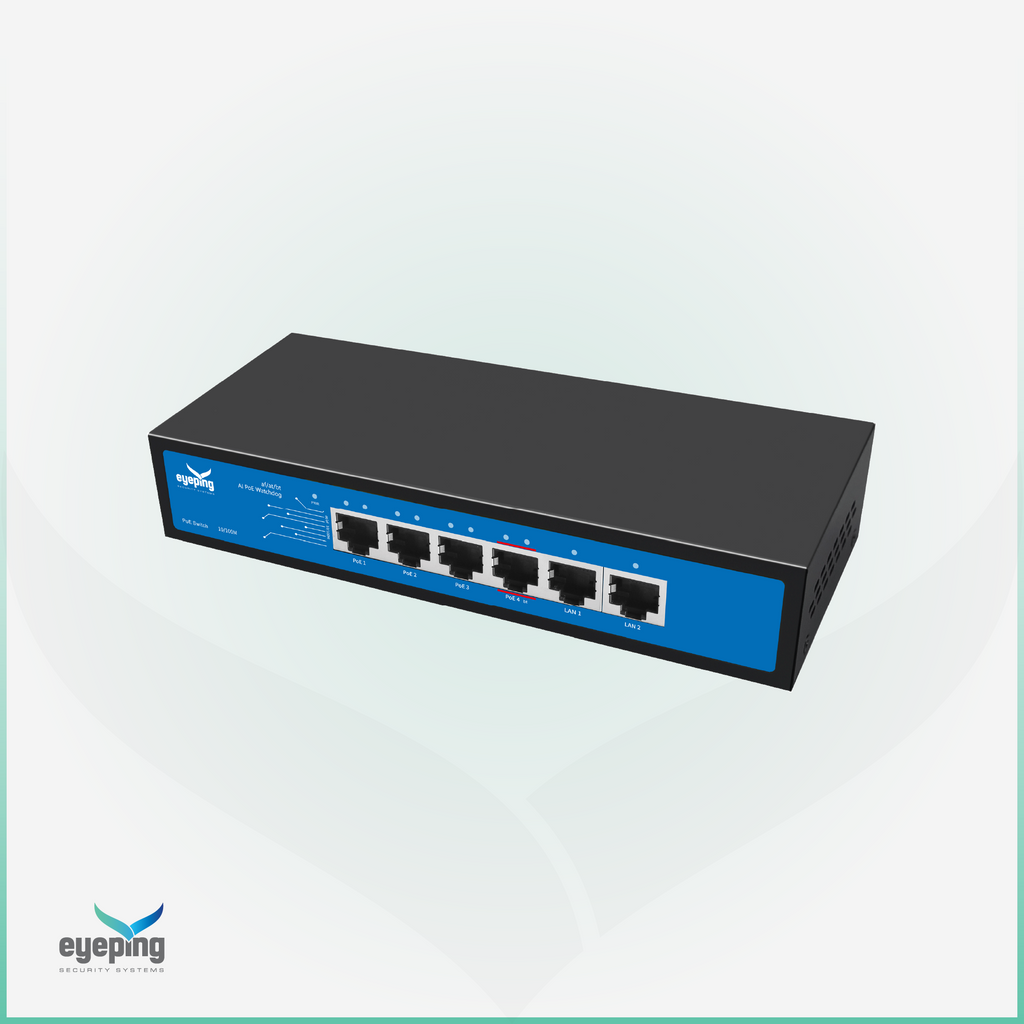

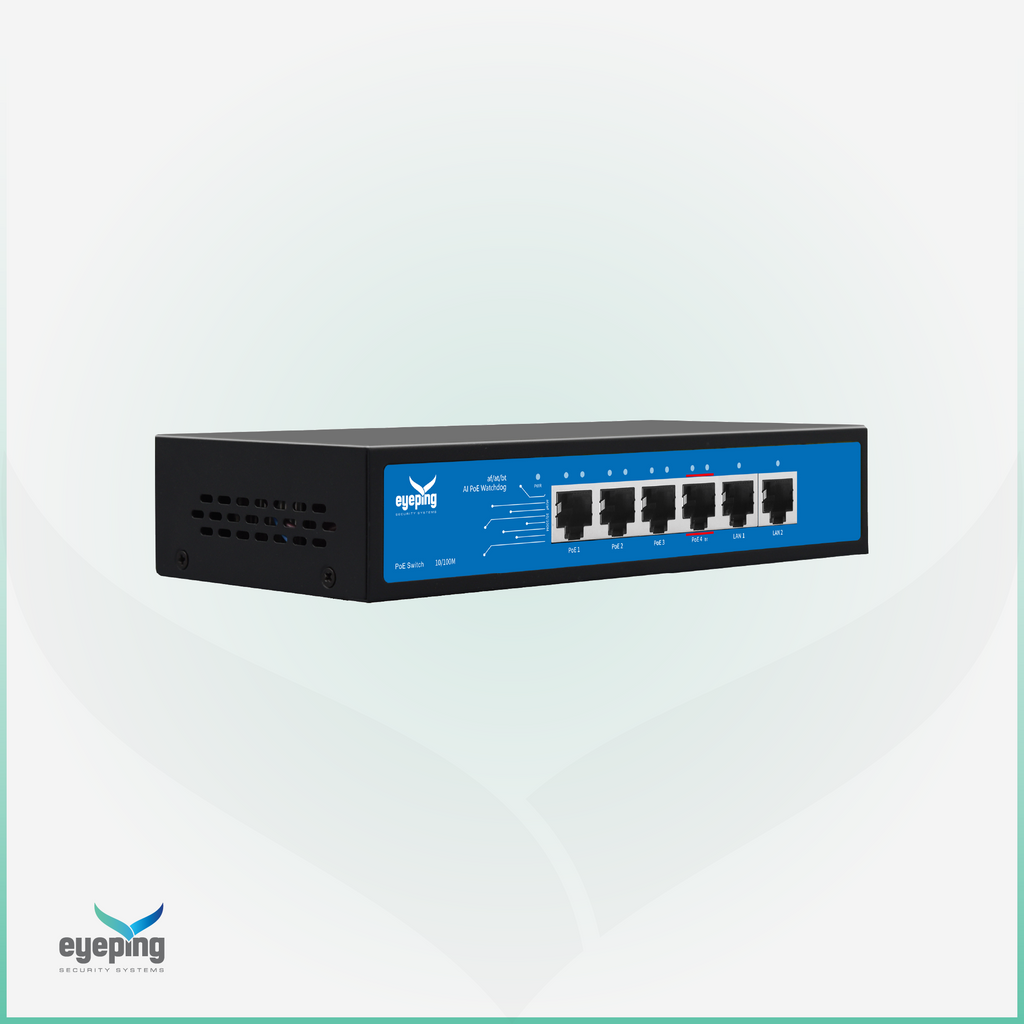

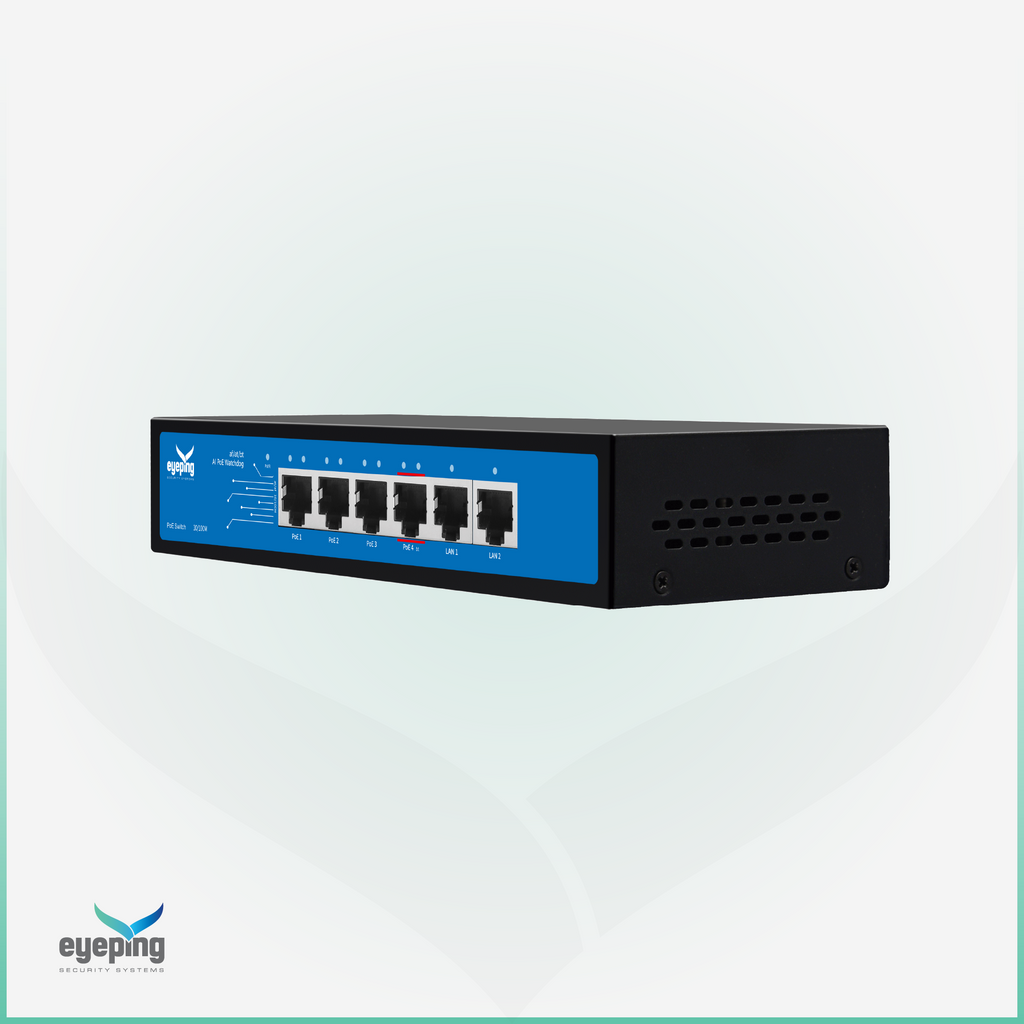

EYEPING GS-S2006-4P0 – AI PoE Switch

Compact and Reliable PoE Networking Solution

Optimized PoE & Uplink Connectivity

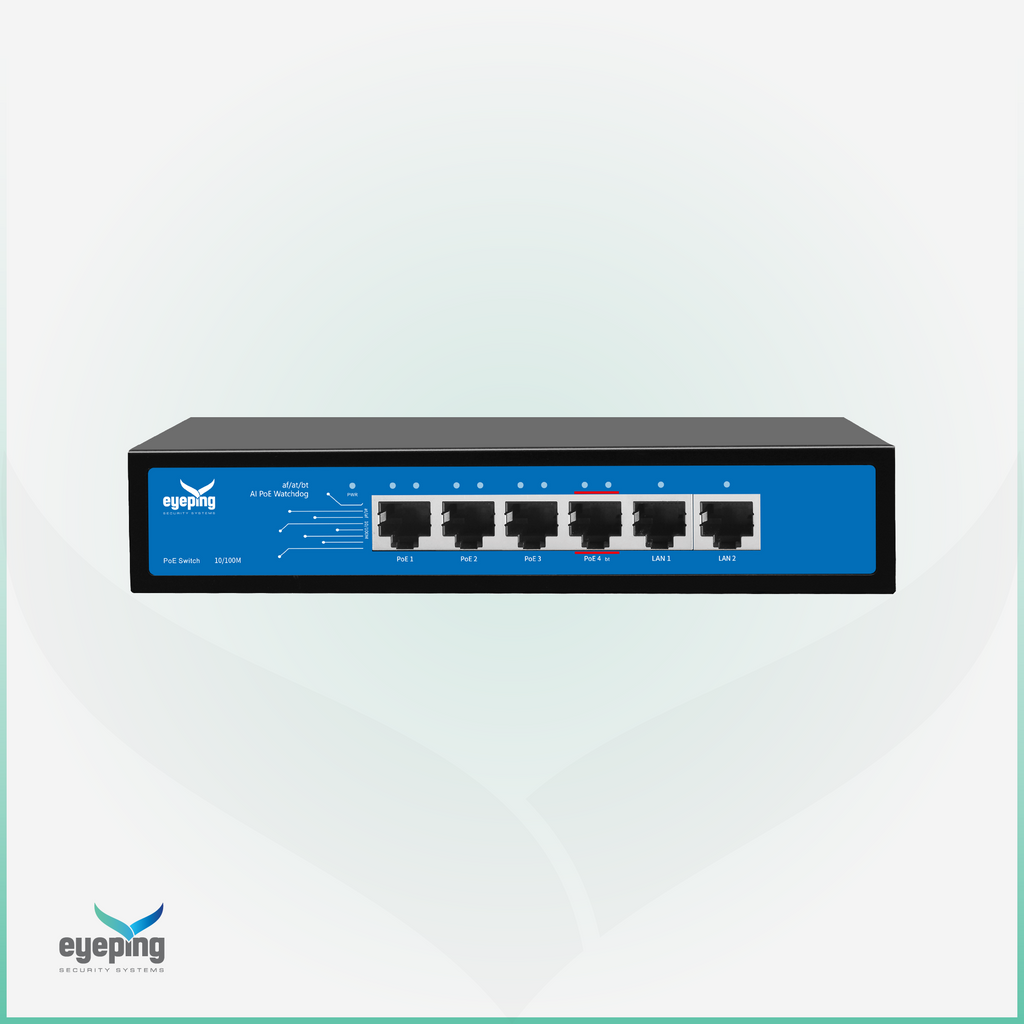

• 4× 100Mbps PoE ports for stable power and data transmission

• 2× 100Mbps uplink ports for reliable network expansion

PoE Power Management

• Ports 1-3: Supports IEEE 802.3af/at (PoE/PoE+) for efficient power delivery

• Port 4: Supports IEEE 802.3af/at/bt (PoE/PoE+/PoE++) with up to 60W power output for high-power devices

Advanced Protection & Stability

• 6KV Lightning Protection & 8KV Electro-Static Protection for enhanced durability

• Short-Circuit, Over-Temperature & Surge Protection ensuring long-term stability

High Performance & Automation

• Bandwidth: 1.2Gbps for smooth data transmission

• MAC Address Table: Supports up to 2K devices for scalable networking

Extended Transmission & Power Efficiency

• Max Transmission Distance: 130m (100Mbps) for extended coverage

• Power Input: AC 90~264V / 65W / 50-60Hz for stable power management

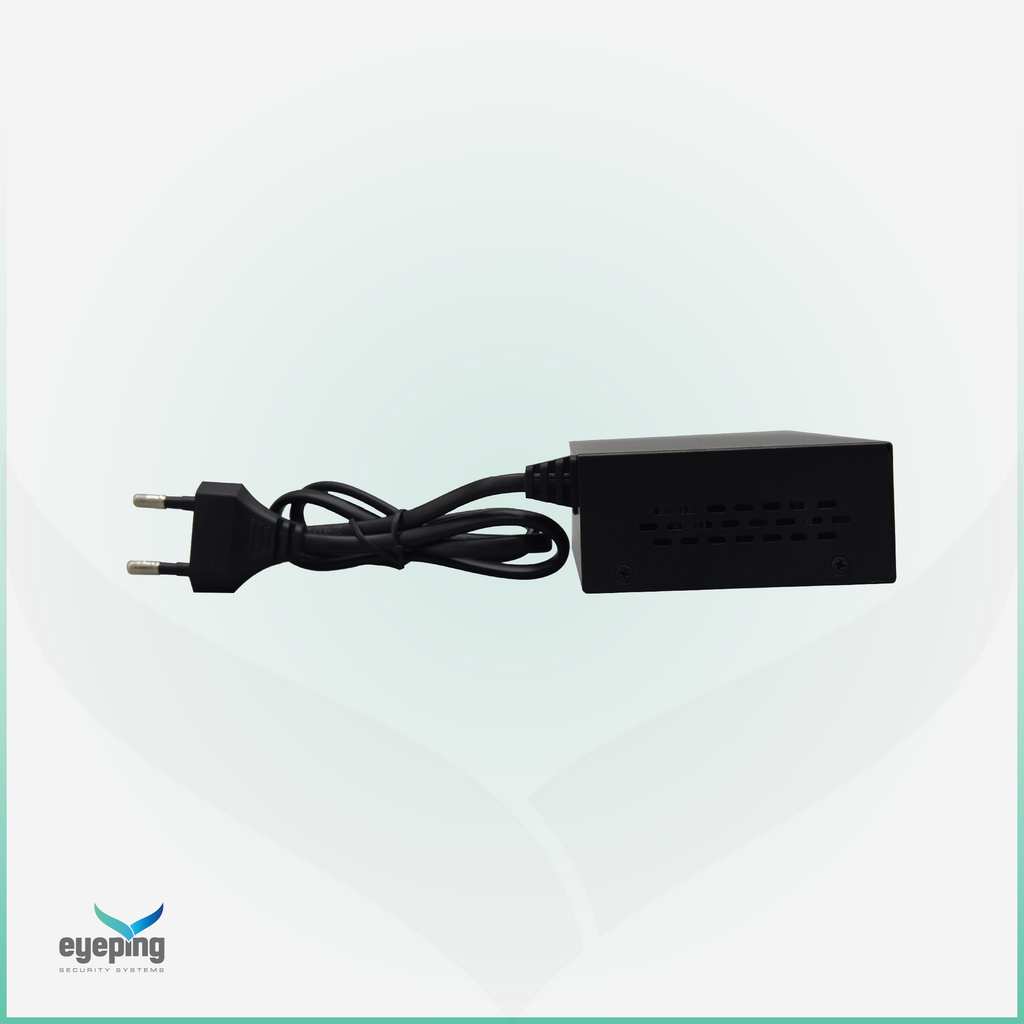

• Integrated AC Power Cable: Supports only European plugs and two-pin US plugs

Ideal for small businesses, security systems, and PoE-powered applications requiring reliable performance.

Upgrade to EYEPING GS-S2006-4P0 for cost-effective, AI-driven PoE networking!
